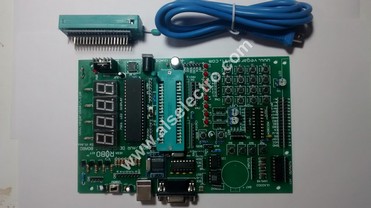

8051_AVR 2 in 1 DEVELOPMENT BOARD with Programmer
8051_AVR_2 IN1 Development Board with Programmer
AVR & 8051 2 in 1 Development kit with Programmer
8051 & AVR DEVELOPMENT BOARD WITH PROGRAMMER

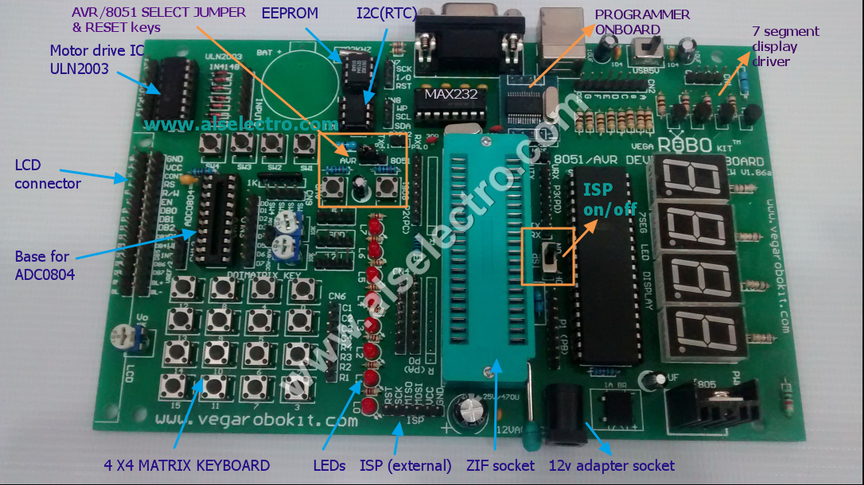

An excellent choice for students to learn 8051 & AVR using this single Development board.No external Programmer required .On board Programmer , 7 segment Display array , LEDs to see result , 4 x 4 matrix keypad , Motor drive ULN2003 , Eeprom ,I2C chips , RS232 circuit all included.
LCD port provided to add 16 x 2 LCD .ADC0804 IC socket provided for analog input testing to 8051 IC. (LCD & ADC to be purchased separately).
Additional ZIF socket with modification pcb is provided to host AVR ICs.
Video Tutorial
DOWNLOADS :
WLAR Software,Prolific driver,Schematic
