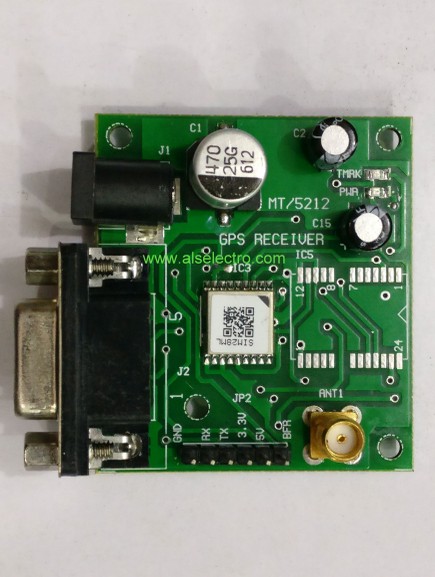

SIM28 SIMCom GPS Module









SIMCom presents an ultra compact and reliable GPS module-SIM28. This is a standalone L1 frequency GPS module and is designed with the MediaTek MT3339
high sensitivity navigation engine, which allows you to achieve the industry’s highest levels of sensitivity, accuracy and Time-to-First-Fix (TTFF) with the
lowest power consumption. Please note: Footprint compatible with the uBlox NEO series

Performance Data

Receiver type 22 tracking / 66 acquisition channel GPS L1, C/A Code
Max. update rate 10Hz
Sensitivity
    Tracking: -165 dBm
    Reacquisition: -160 dBm
    Cold starts: -147 dBm
Time-To-First-Fix
   Cold starts: 31 s (typical)
   Cold start with EPO Assist : 13 s (typical)
   Hot starts: <1 s (typical)
Accuracy
    Position:  2.5m CEP
EPI 30days data : 1.99m
Speed: 0.1m/s

PROTOCOL NMEA

GPS MODULE power is 2.9v to 3.6v .Regulator is on board , so you can provide upto 9v DC safely

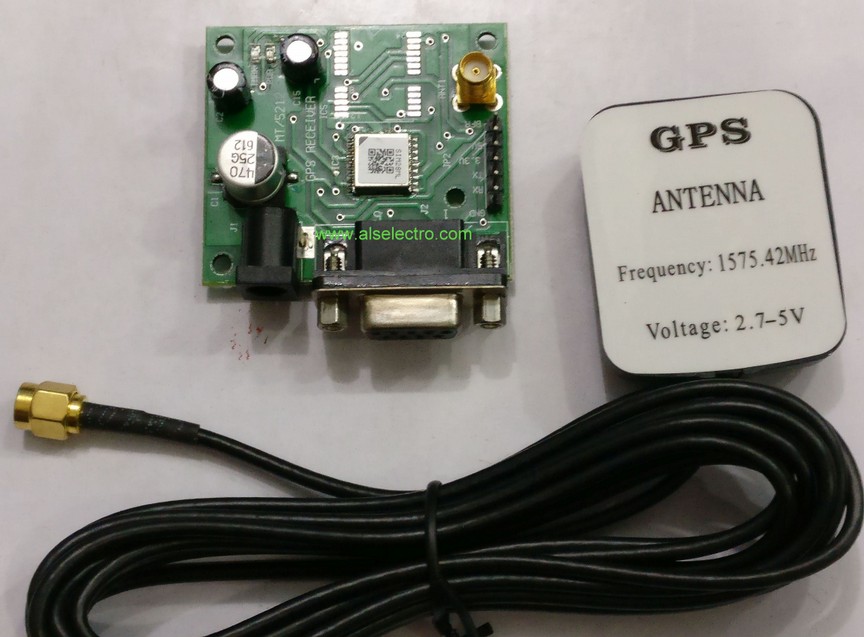

Powered external antenna is supplied alongwith.
